HDMI 2.1 Cable Process Description and Customization Requirements
TECHNICAL PARAMETER

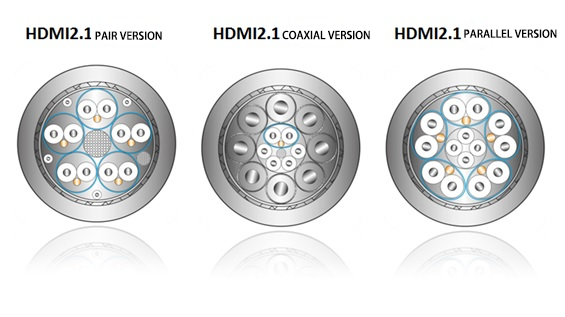

Industry experts have worked together to develop a full range of coaxial, twisted pair, and parallel pair HDMI2.1 that meet the requirements of the association. The production range of wire diameters is 40-24AWG . The actual measured values of the parameters are higher than the standard requirements, which can meet the needs of customers for different lengths.

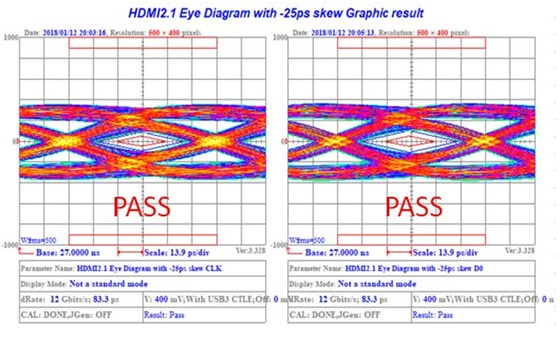

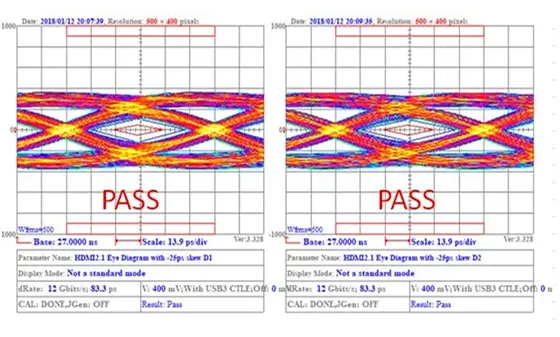

HDMI 2.1 32AWG twisted pair 2m finished product passed the customer's eye diagram test
description2

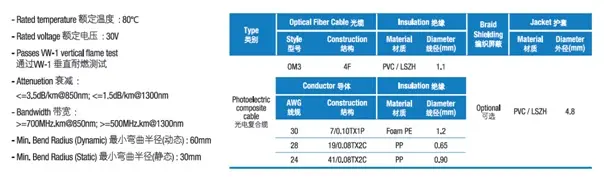

In order to meet the requirements of high-speed and long-distance transmission, we have also developed various types of optoelectronic HDMI, USB, DP, VR cables, etc., using multi-mode and single-mode quartz optical fibers with strong bending resistance and low-attenuation plastic optical fibers. The production equipment is fully equipped and can provide customers with customized products and solutions.
HDMI 2.1 CABLE High Definition Multimedia Interface Cable
HDMI stands for High Definition Multimedia Interface. The standard was initiated by seven companies including Sony, Hitachi, Panasonic, Philips, Toshiba, Siliconimage, and Thomson (RCA) in April 2002. It unifies and simplifies user terminal wiring, replaces analog signal video, and provides higher bandwidth data transmission speed and digital lossless transmission of audio and video signals.
1. Maximum broadband capacity: HDMI2.1 can run at a maximum rate of 48Gbps. Therefore, HDMI2.1 can transmit more information, and the transmitted images have higher resolution and higher frame rate;
2. Resolution and frame rate: The new HDMI 2.1 standard now supports 7680×4320@60Hz and 4K@120hz, including true 4K resolutions of 4096×2160 pixels and 3840×2160 pixels.
3. Playback smoothness: When playing 4K video, the frame rate of HDMI2.1 is higher than that of HDMI2.0, making the playback smoother.
4. Latency: HDMI 2.1 features variable refresh rate and quick frame transport, two features that can reduce latency and potentially eliminate input lag altogether.
Product Application
PDP TV, LCD, HDTv, RPTV, DVD.etc plasma TV, LCD TV, high-definition digital TV, rear projection, DVD, etc.
Product Description: | ||||||||||
Rated Voltage: 30V |
Rated voltage: 30V |
|||||||||
Rated Temperature: 80C |
Rated temperature: 80℃ |
|||||||||
Flammability Test: VW-1 |
Combustion test: VW-1 |
|||||||||
Jacket: PVC (UL20276)/FRPE (UL21100) |
Outer sheath: PVC (UL20276) / FRPE (UL21100) |
|||||||||
Print Legend: HIGH SPEED HDMI CABLE (WITH ETHERNET) |
Printing: HIGH SPEED HDMI CABLE (WITH ETHERNET) |
|||||||||
Electrical Characteristics | ||||||||||
TMDS |
Impedance |
Delay |
FEXT Far-end crosstalk |
Delay Skew |
||||||
|
|
|
|
Intra |
Inter |
|||||
|
100±10 |
5.2 |
-20 |
30ps |
500ps |
|||||
HEAC |
Impedance |
Common |
/ |
Delay Skew |
||||||
|
|
|
|
Intra |
||||||
|
100±10 |
30±6 |
/ |
111ps |
||||||

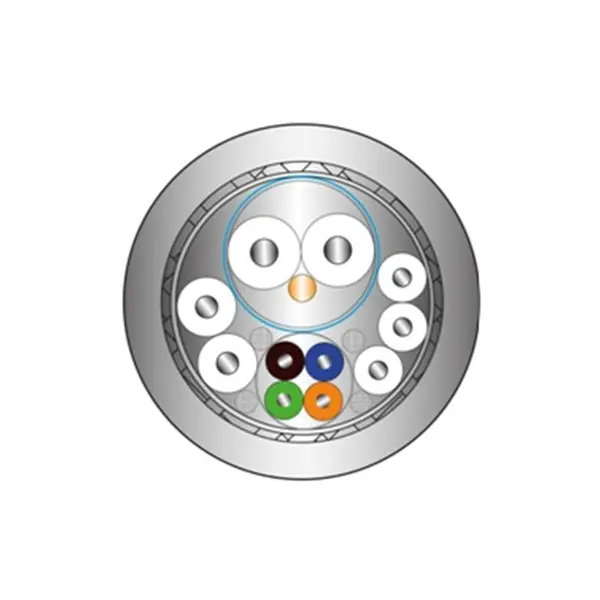

Product Construction Product structure: | ||||||||||
AWG |
Conductor |
Round Cable |
||||||||
|
|
Construction 1 |
Construction |
Overall |
Jacket |
|||||
|
|
5P |
4C |
|
|
|||||
|
|
Material |
Shield |
Material |
|
Material |
Diameter |
|||
30 |
1/0.28SC |
Foam |
A+D+M |
PP/PE |
A+B |
PVC |
6.00 |
|||
|
|
|
|
|
|
|
|
|||
A: AL-Mylar Aluminum Foil Mylar M: Mylar Mylar D: Drain Ground Wire B: Braid | ||||||||||
