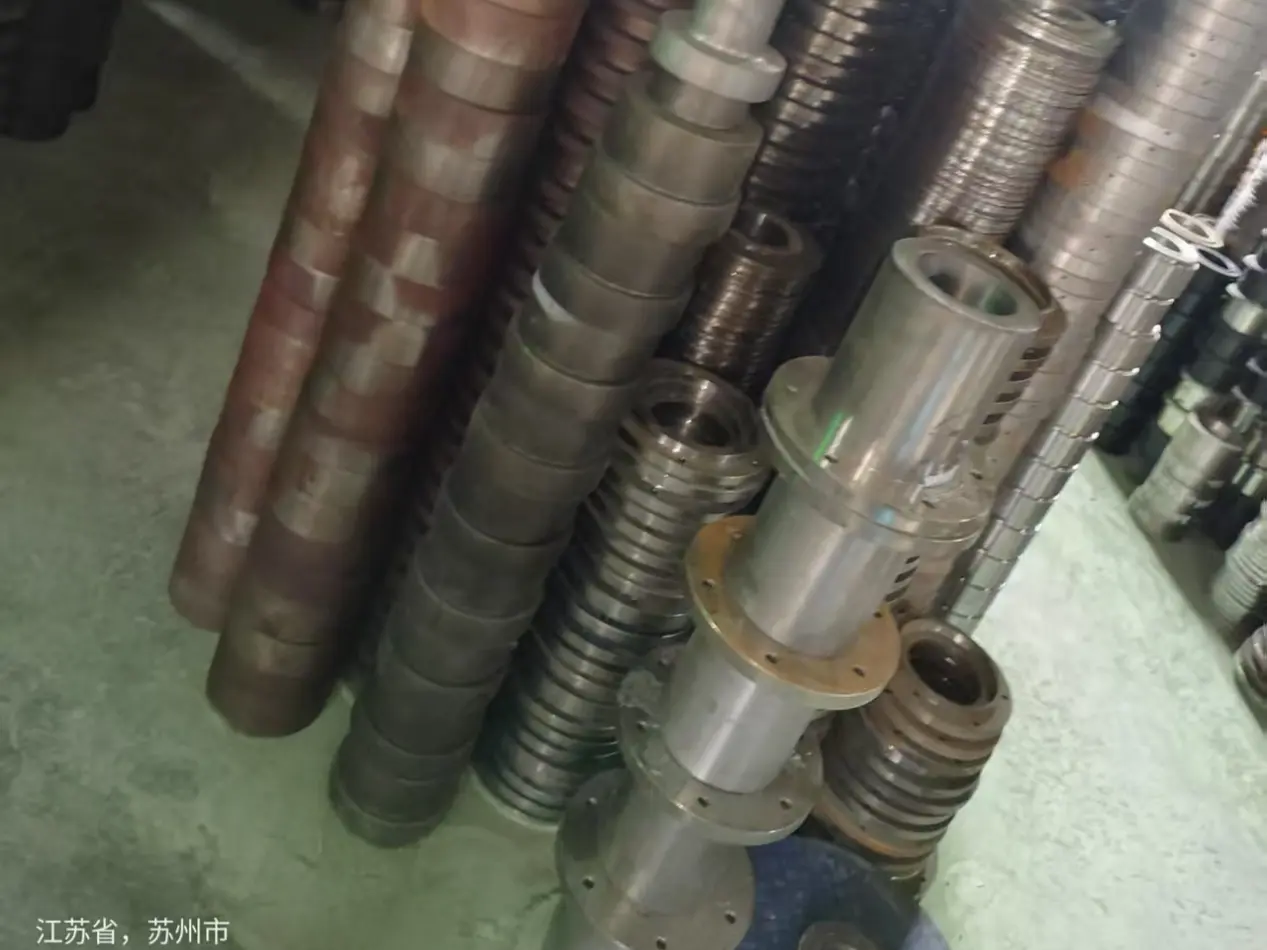

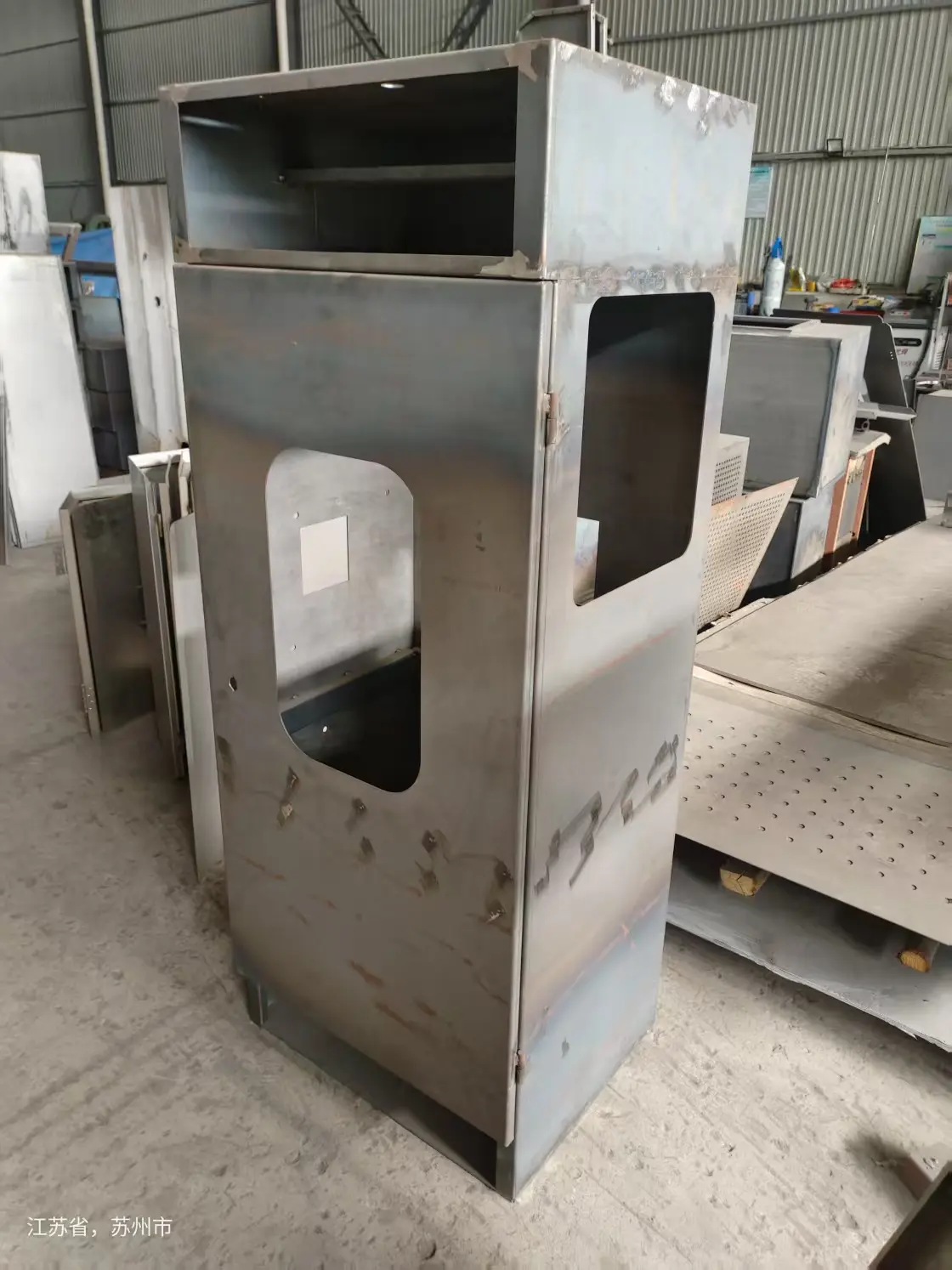

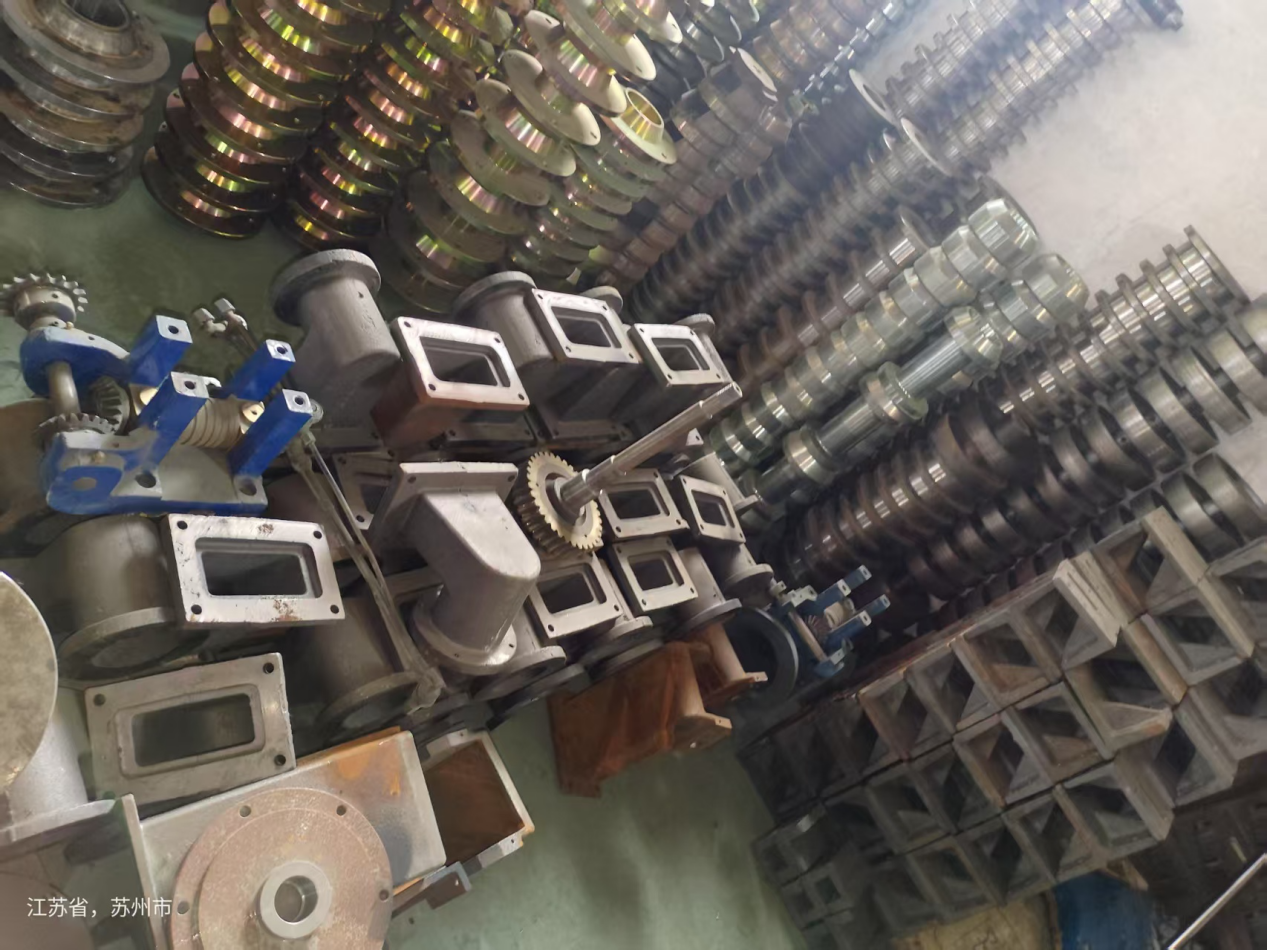

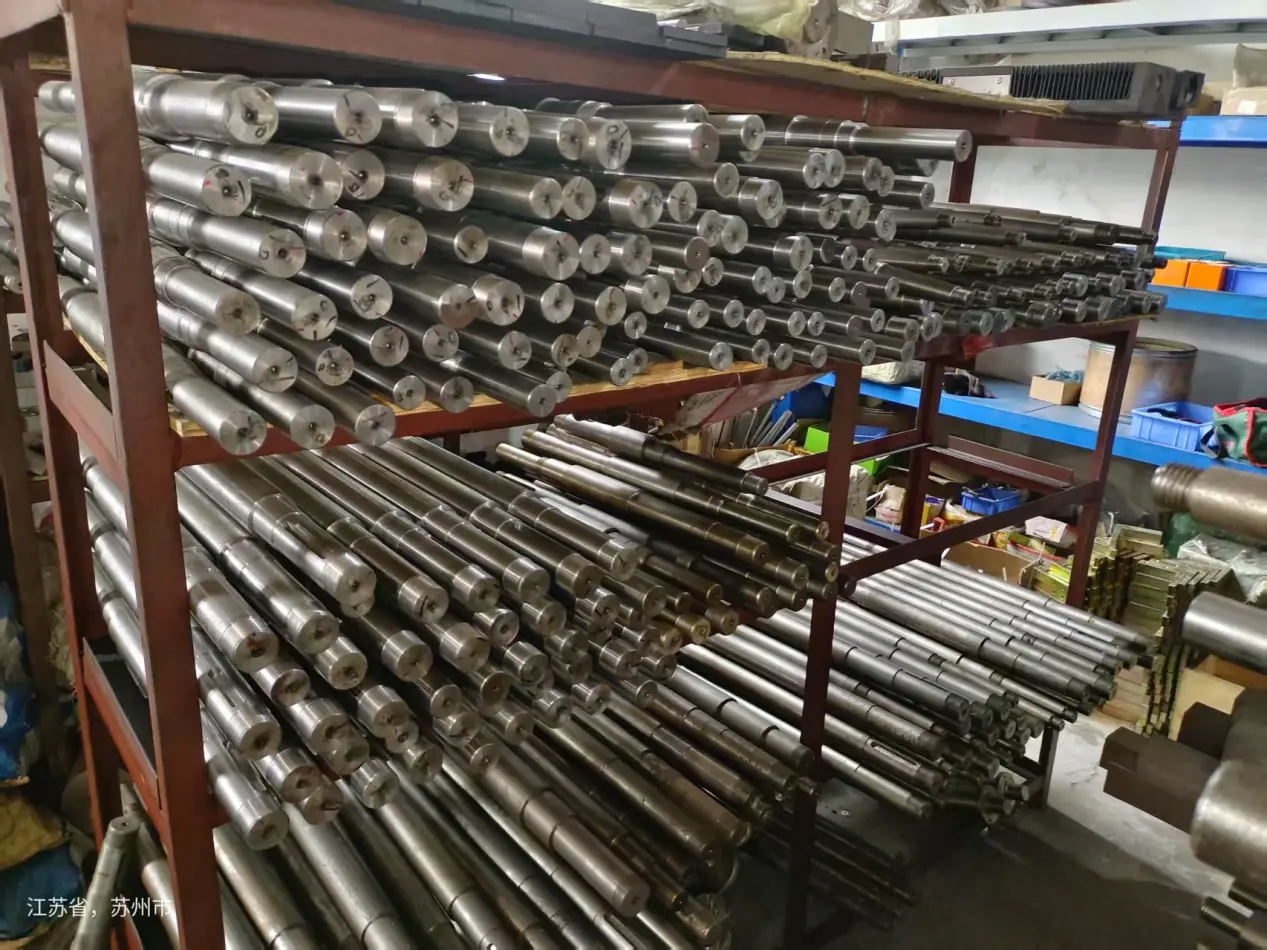

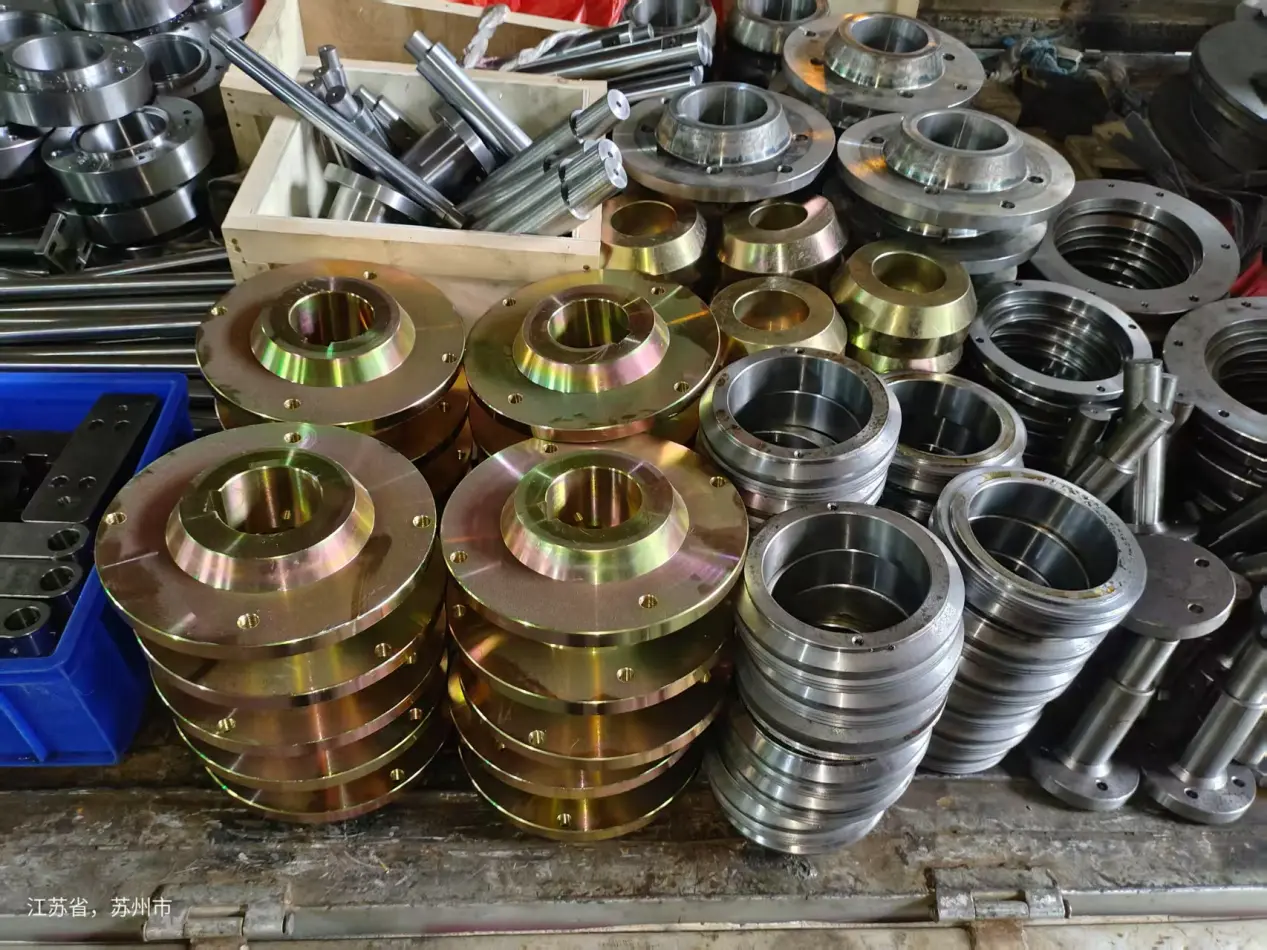

Supply of complete sets of spare parts for refurbishment or assembly of 28 die vertical copper-clad aluminum or aluminum-magnesium alloy fine micro drawing machines
Customization of Non-standard Components and Devices

Supply of complete sets of spare parts for refurbishment or assembly of 28 die vertical copper-clad aluminum or aluminum-magnesium alloy fine micro drawing machines

2025-07-03
div容器

Due to the continuous rise in copper prices, which have remained at a high level without any downward adjustment, the high prices of copper cables have made it difficult for end-users or users to accept, seriously affecting cable sales.


In order to alleviate conflicts, alternative solutions to pure copper conductors have emerged in the market, especially for copper-clad aluminum and aluminum alloys. We have specifically developed and produced wire drawing machines for copper-clad aluminum and aluminum alloys to meet market demand.

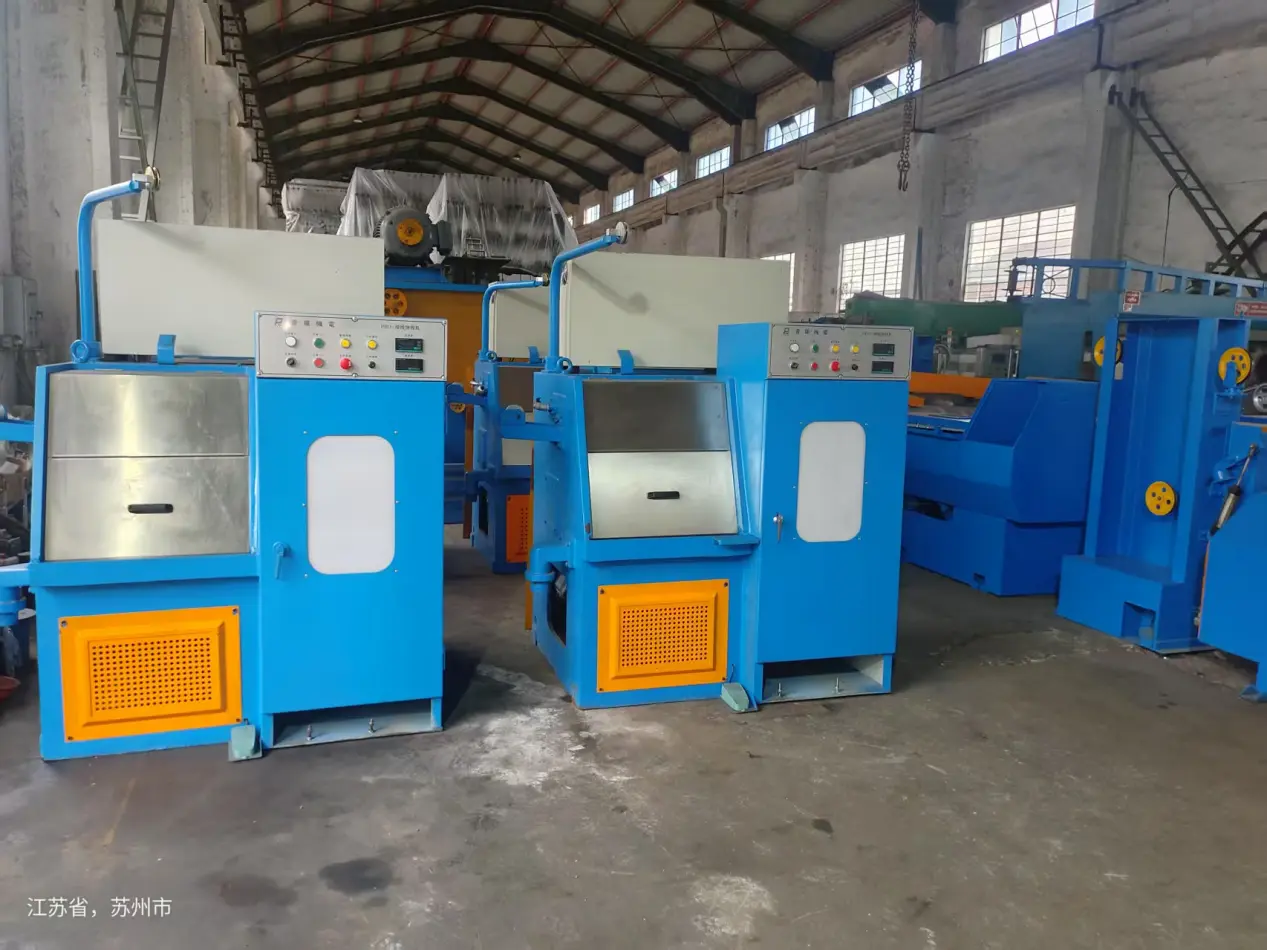

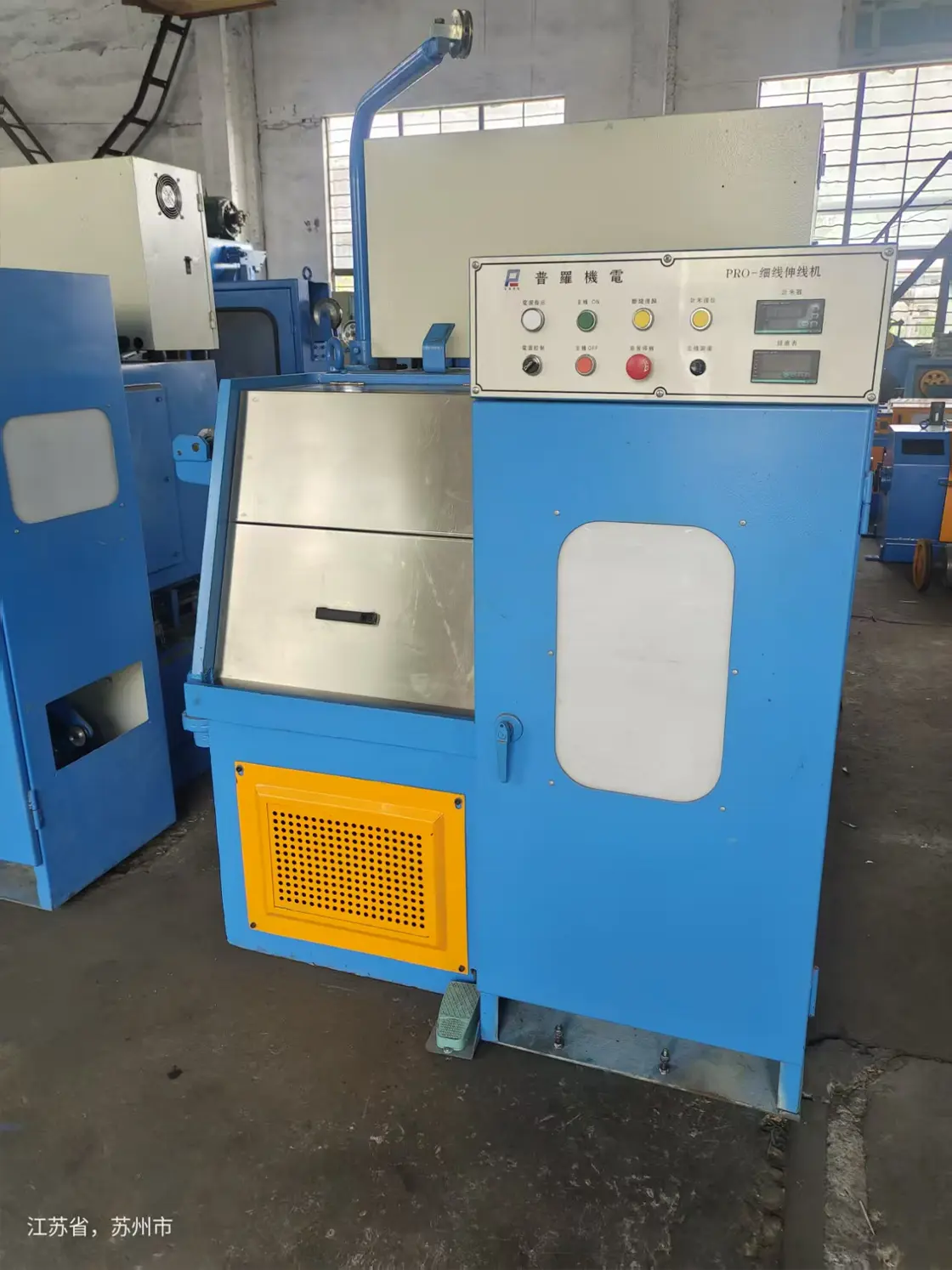

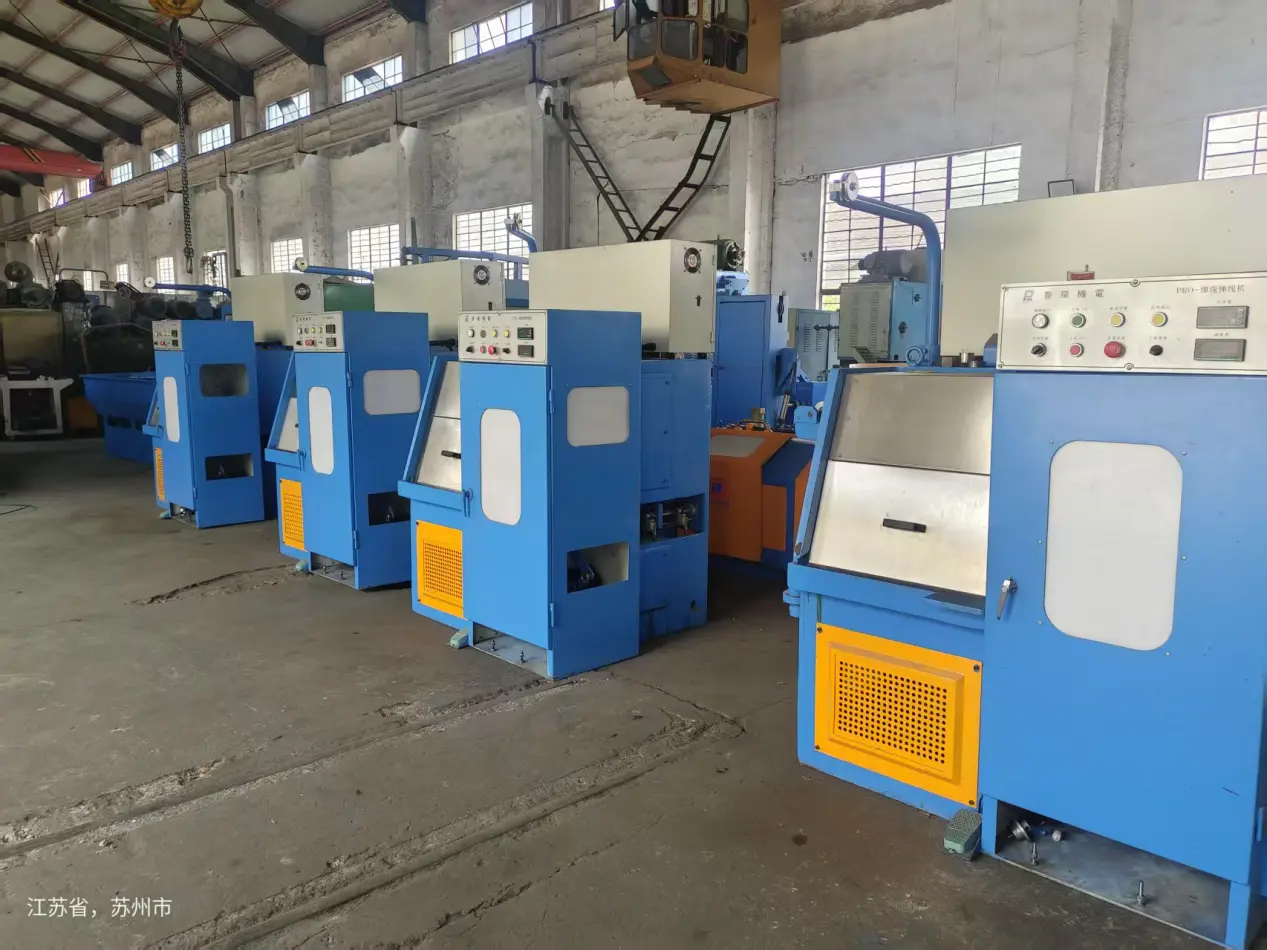

Specification Table for 28D Aluminum-Magnesium Alloy Wire (Copper-Clad Aluminum Wire, Copper-Clad Aluminum-Magnesium Wire) Drawing Machine

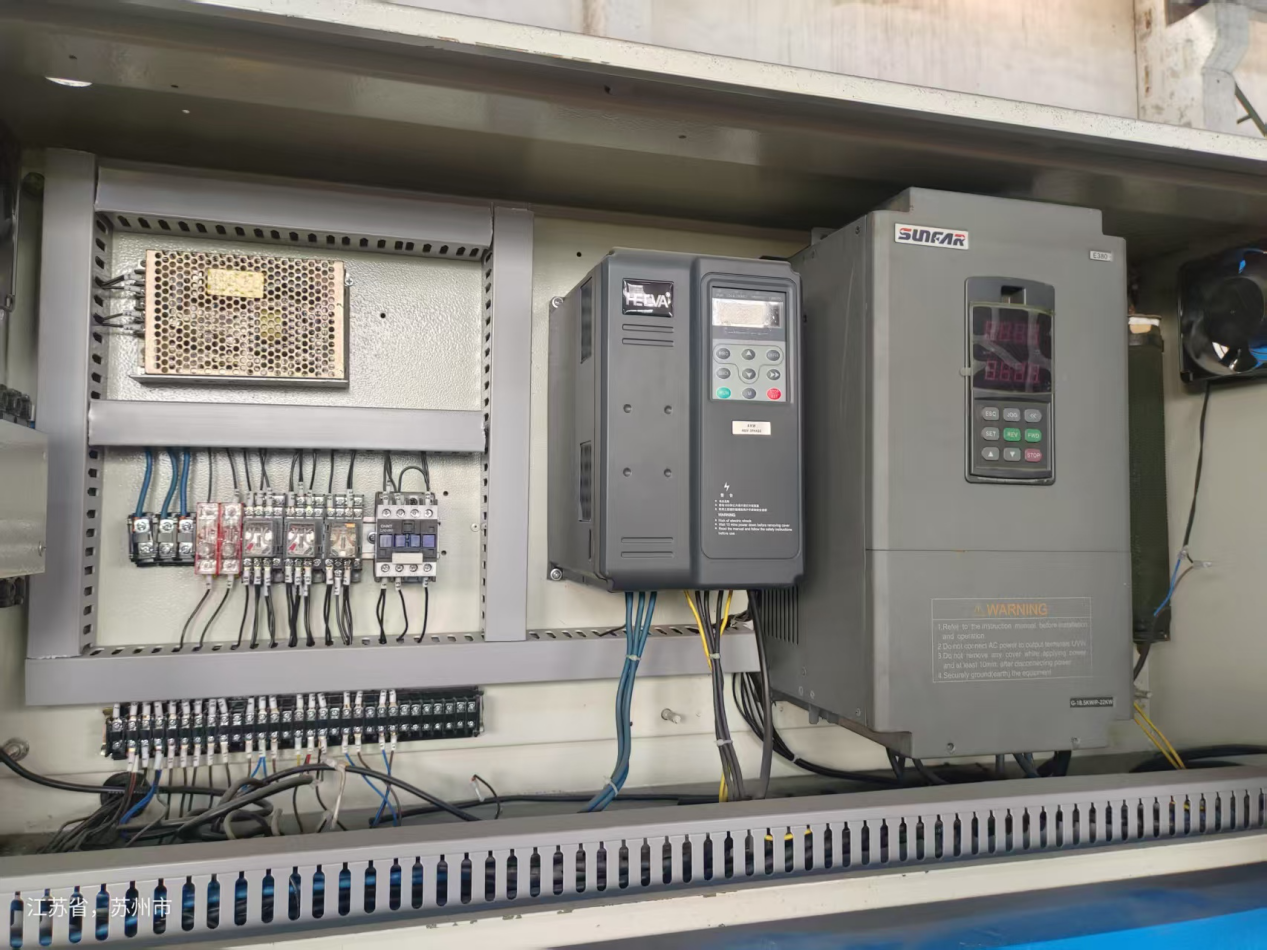

Power control: Dual frequency conversion control
Maximum die no.: 28
Inlet dia.(mm): Φ0.80—Φ1.20mm
Outlet dia.(mm): Φ0.1—Φ0.35 mm
Maximum drawing speed: MAX 2500m/min
Slip ratio of m/c: 13%
Fixed speed Slip ratio of m/c: 8%
Body structure: One-piece casting
Capstan wheel: ceramic plasma capstan wheel
Wire drawing power: 7.5KW
Take-up power: 2.2 KW
Capstan wheel diameter(mm): Φ243mm
Fixed speed Capstan wheel diameter(mm): Φ206.8mm
Spool bobbin size: Φ300mm×Φ215mm×270mm or customized by customer
Bobbin loading & unloading method: shaft type
traversing method: 110W synchronous motor + flat belt
Transmission mode: flat belt

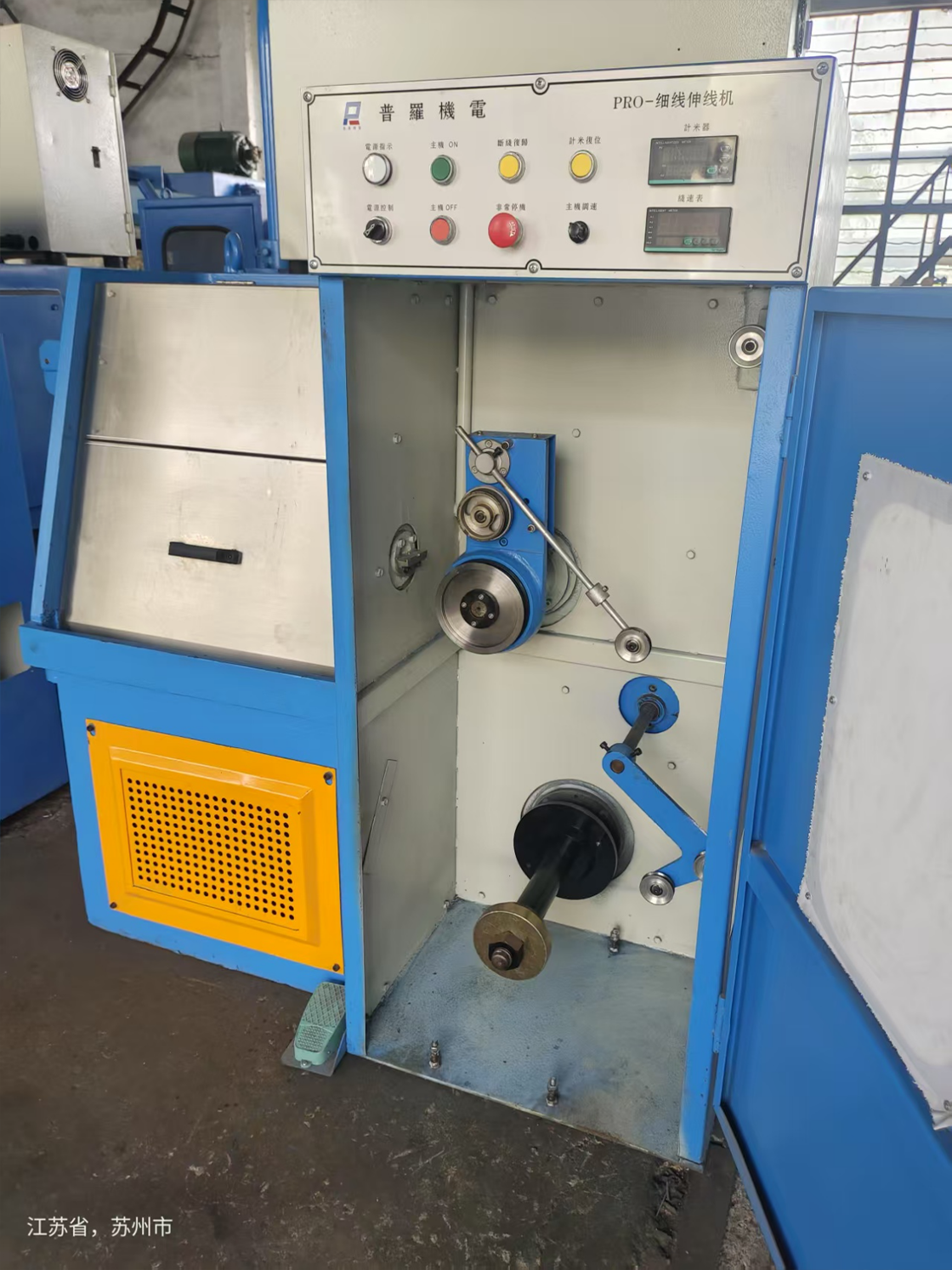

Coiling control: PID displacement detection synchronous control spooler
Displacement detection device: weight balance by swing arm
Tension adjustment method: counterweight method
Wire drawing lubrication method: spray type
Braking: Electromagnetic brake
Bearing lubrication method: oil-free
Operating voltage: 380V 50/60HZ
Wire drawing oil volume: 40 liters/minute
Machine weight: 2400KG
Overall dimensions(m):2.05×1.60×1.10
