Product model: DF-M-30
Measuring method: circle counting, layer counting, meter counting

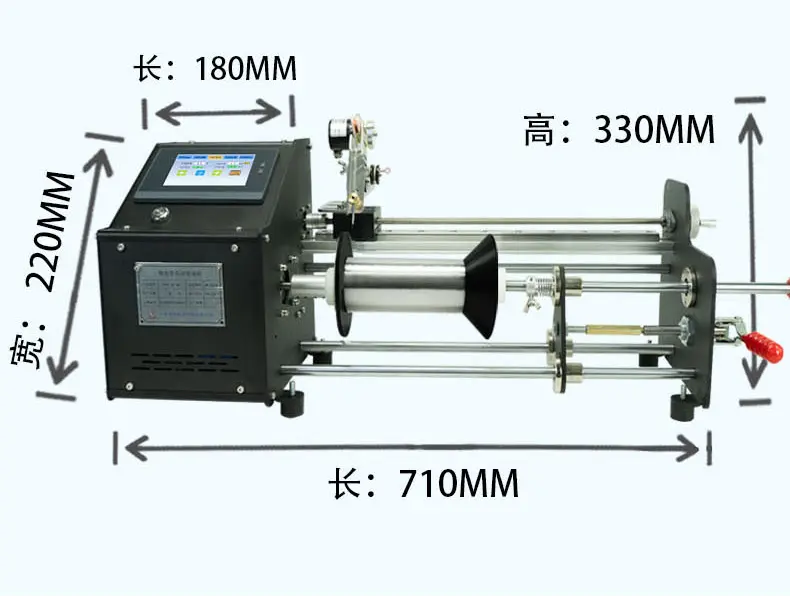

Size (CM): 71 x 39 x 51
Product power supply: 110V--220V
Weight(KG):14KG
Speed (r/min): 5-1000r/min
Winding stability
Smooth fiber release
Optical fiber enhances signal transmission stability

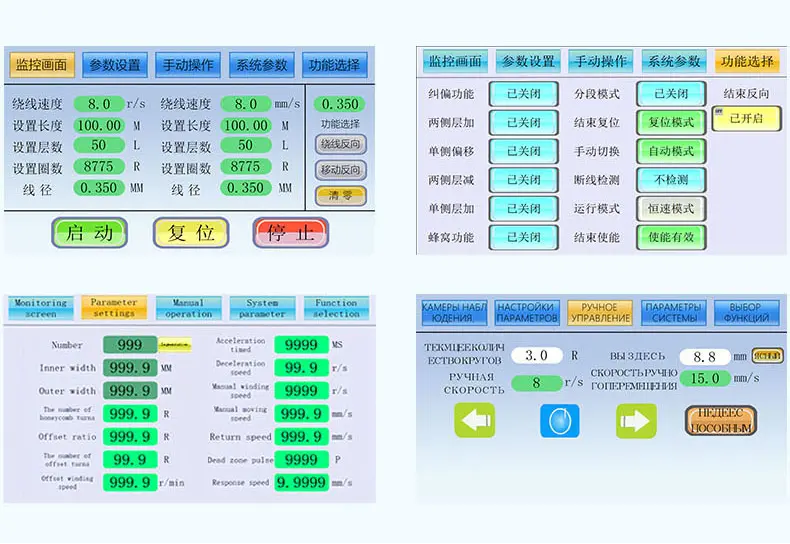

Fully automatic touch screen human-machine interface
Support Chinese, English and Russian language interface

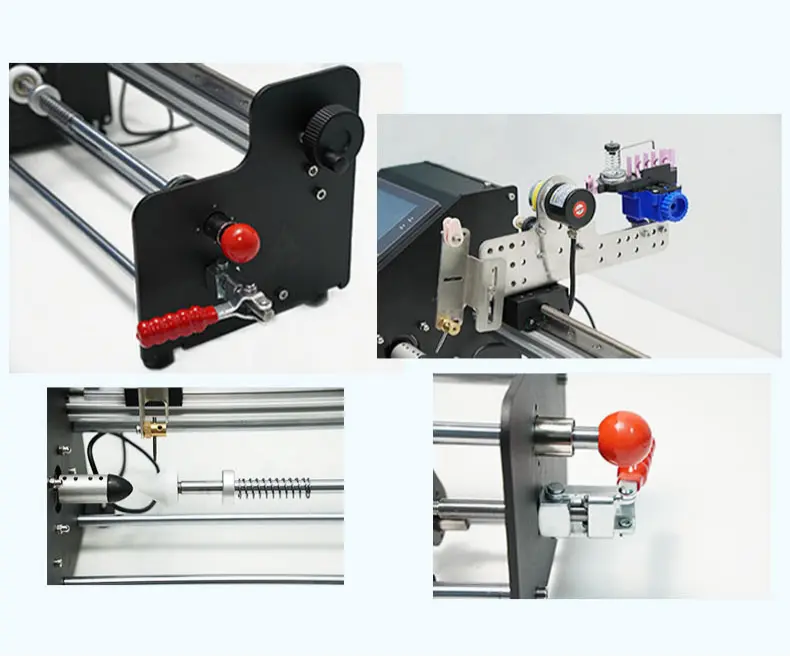

Quick release tool

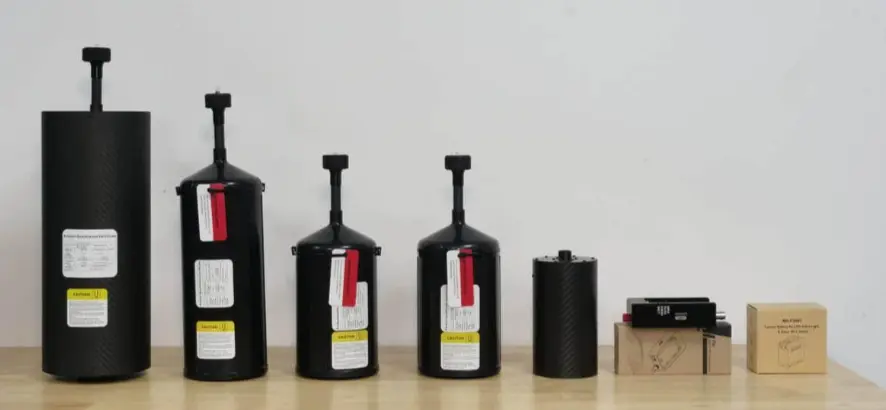

Optional tensile invisible optical fiber and carbon fiber spool and bracket

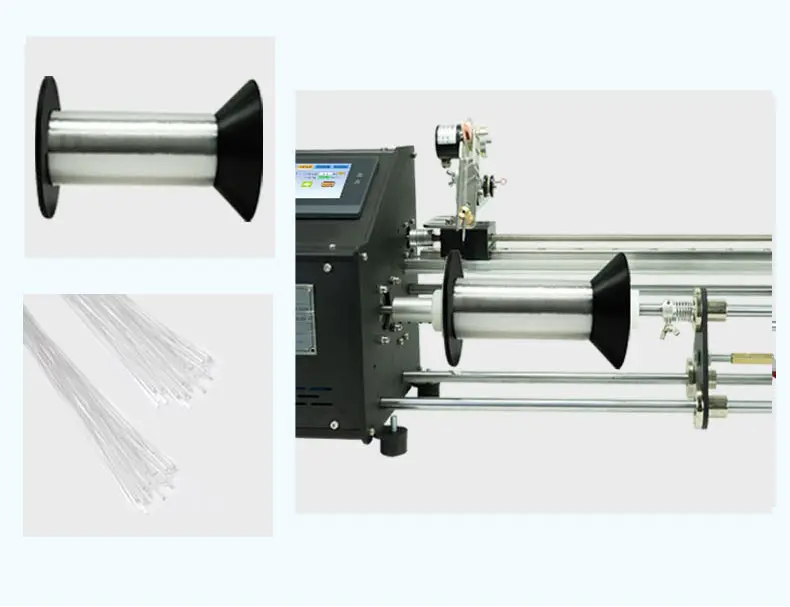

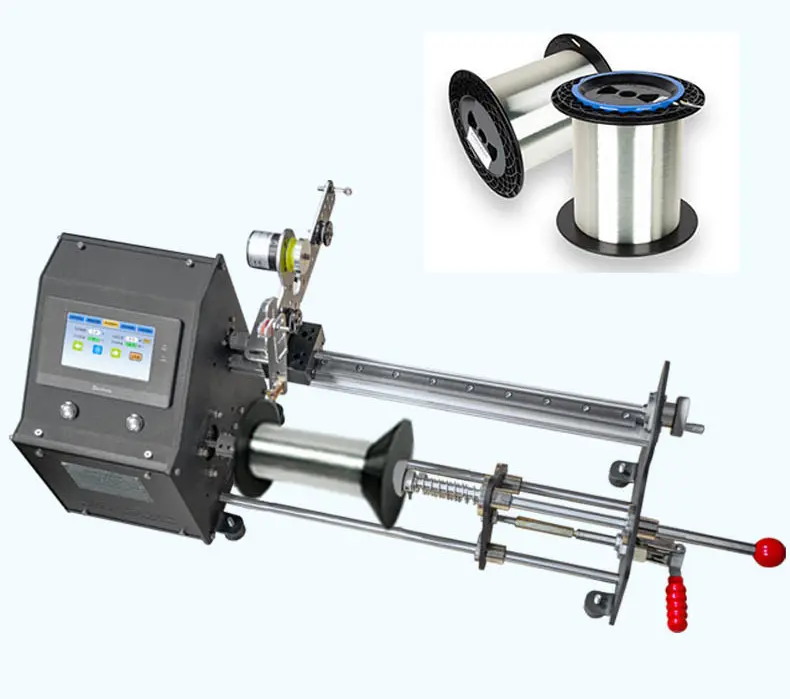

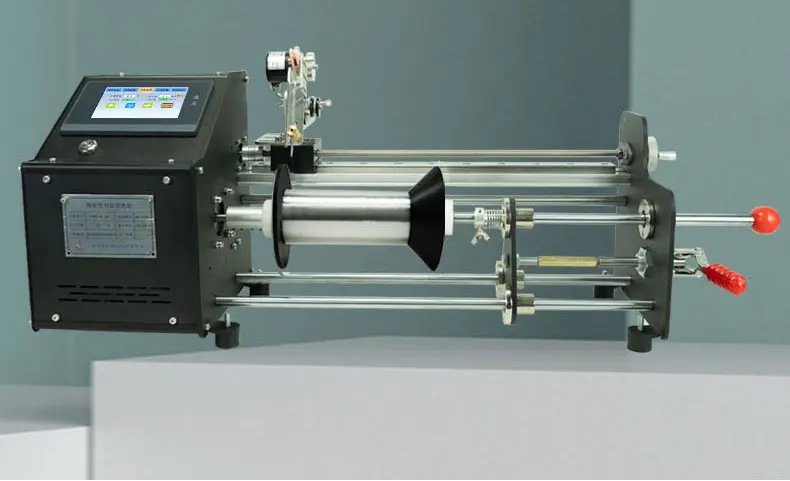

The UAV optical fiber special winding machine is a precision equipment specially used for optical fiber winding. The maximum speed can reach 2200r/min, which can ensure the winding quality and efficiency of the optical fiber. It is simple and convenient to operate, greatly improving the efficiency and accuracy of winding , and is especially suitable for field tactical scenarios .

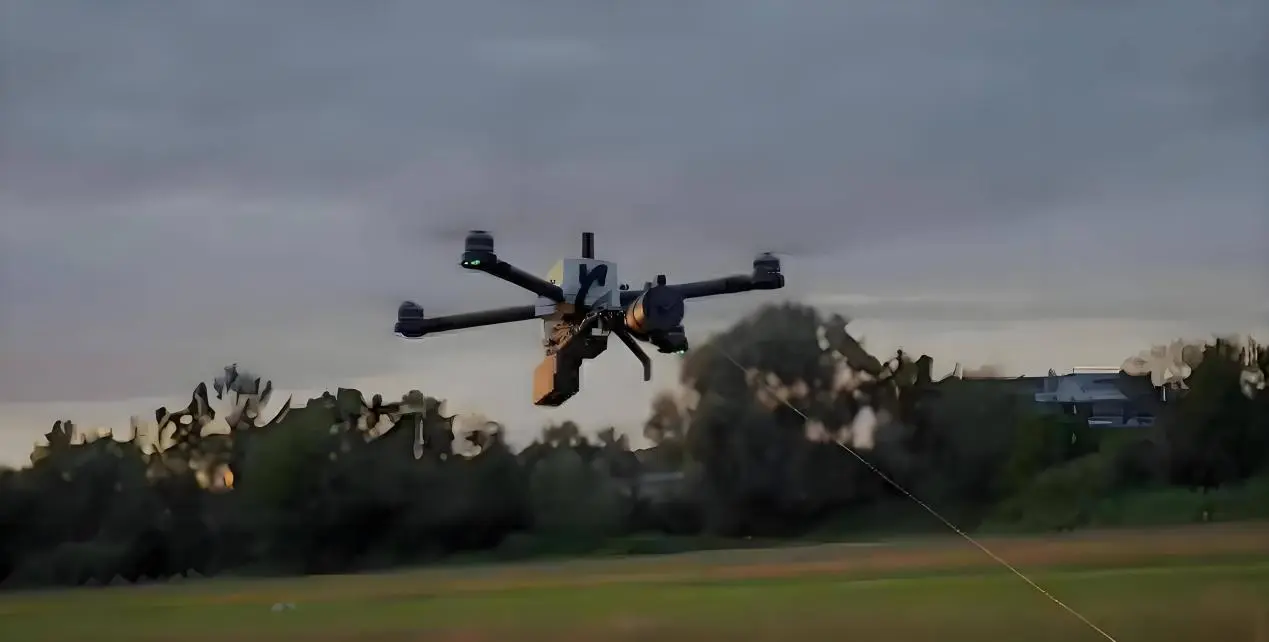

The fiber optic image and data module for drones effectively solves the limitations of traditional communication methods in terms of speed, distance, and anti-interference , opening up broad space for the application of drones in more fields.
The industry-leading control solution for drone optical fiber 5KM-10KM-15KM , 5000 meters of optical fiber weighs 1.1 kg on the axis, and can resist all kinds of electronic interference, including smoke/thermal bombs.
1. No fear of signal interference, stable and reliable

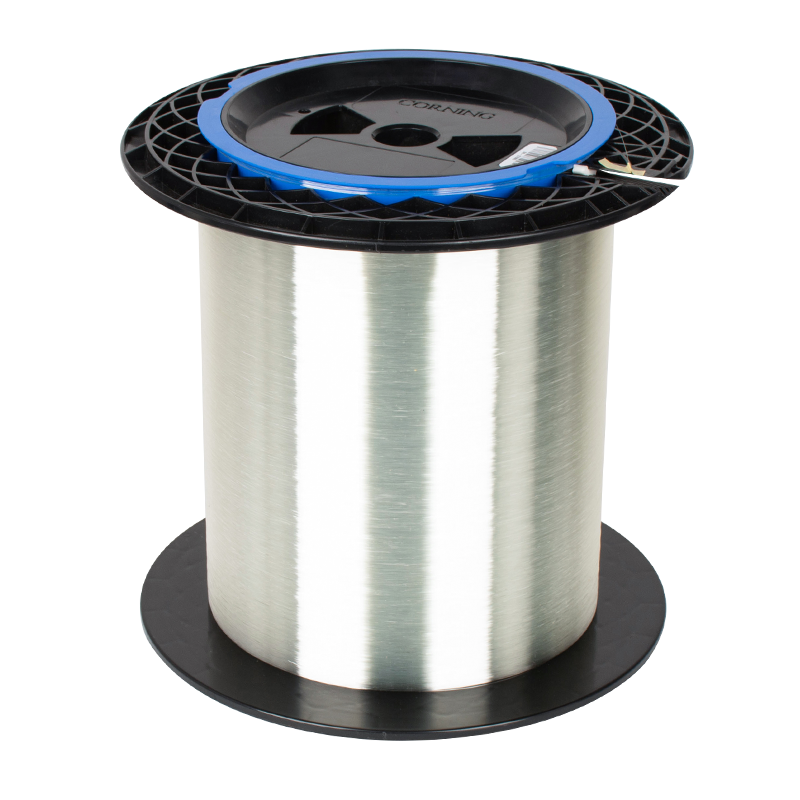

The fiber optic image and data module for drones uses an optical fiber with a diameter of only 0.45mm as the transmission medium. It ignores terrain obstruction, has strong concealment, can calmly deal with radio denial environments, and is not afraid of signal interference. Whether in areas with complex urban electromagnetic environments or in severe weather conditions, it can maintain stable, safe and reliable communications.
2. High-speed transmission, unimpeded long-distance communication
With the outstanding characteristics of high speed and high bandwidth of optical fiber, the maximum supported cable length is 10km, and the cable output speed of the sky end can reach 100km/h, thus realizing ultra-long distance and ultra-high-speed data transmission. Even in complex terrain or vast waters, the signal can be kept strong to ensure the instantaneous transmission of large-scale information flows such as high-definition video and real-time data.
3. Travel light and have diversified product compatibility

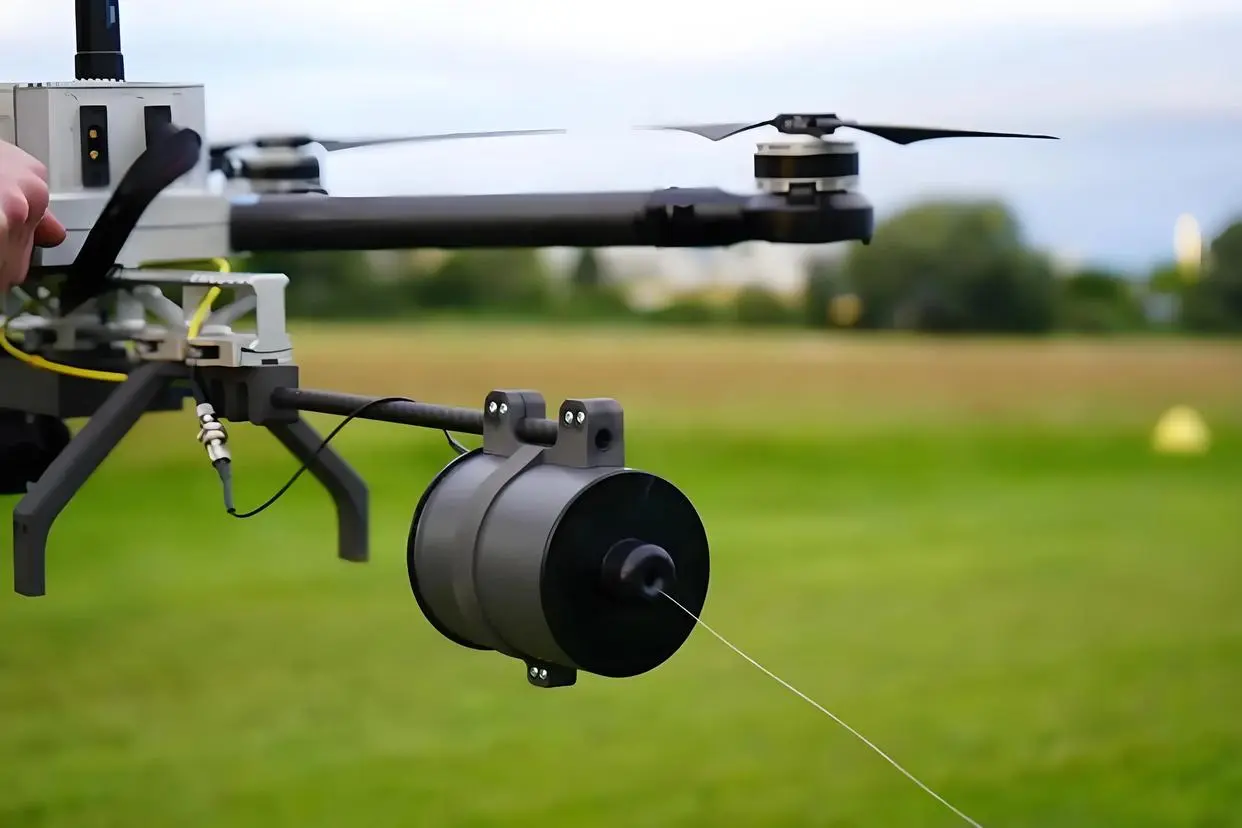

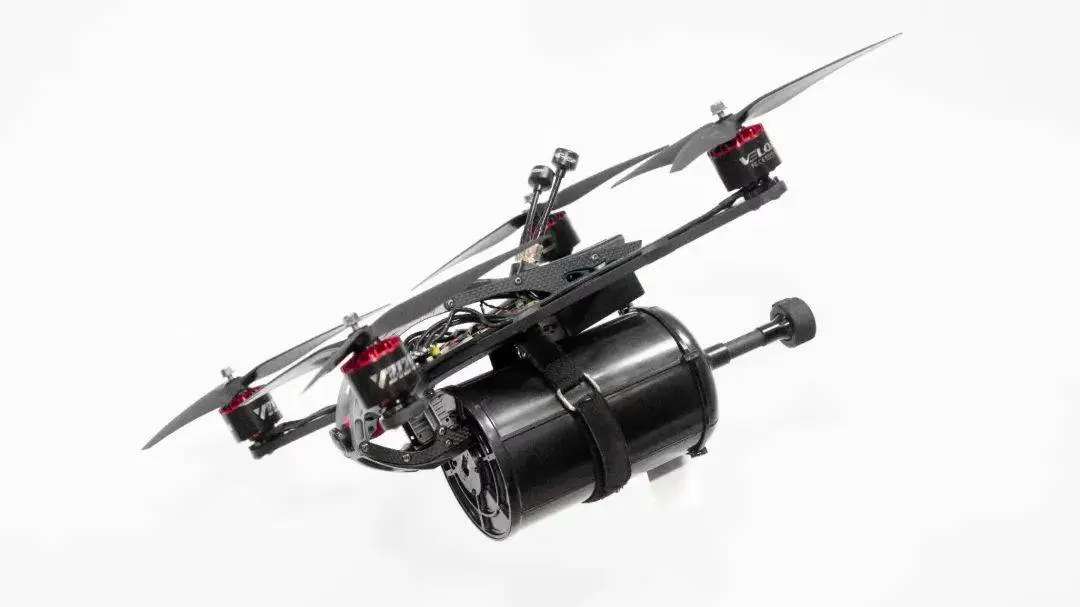

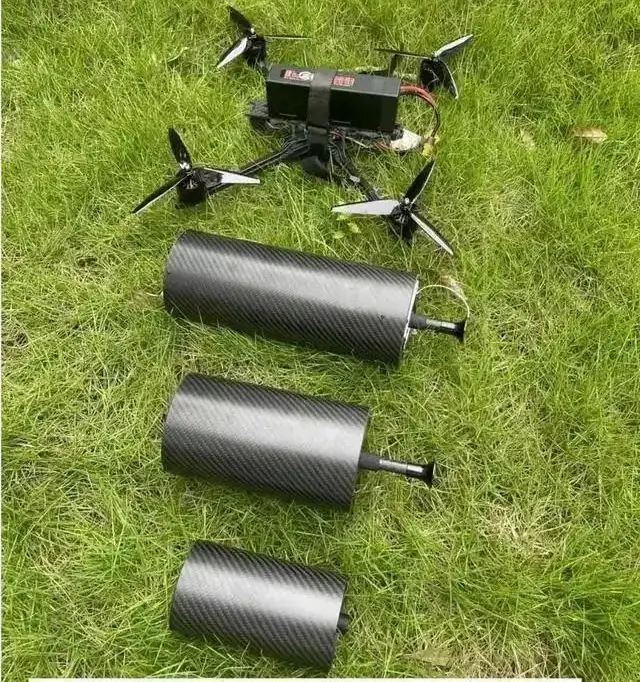

It adopts a modular design concept and supports optical fibers of various lengths, enabling quick assembly with flexibility and convenience. Its ultra-light airborne optical fiber reel module has a 10km optical fiber reel with an overall weight of only 2,450 grams, making it truly lightweight and reducing the burden of flight. At the same time, the module is compatible with multiple requirements of both the sky and ground ends, and can be perfectly adapted both in the sky and on the ground, providing users with a full range of solutions.
4. Multiple application scenarios, excellent performance
It has multiple application scenarios and excellent performance. It can be used in pipeline crawling robot communication, indoor inspection drone, underwater robot communication, remote monitoring, FPV drone communication, etc.
